Wave Point® Technology

• Ideal for Fresh and Saltwater Environments
• High Output Nano Light
• 1-Watt LED Lamps
• Low Voltage UL Listed Transformer
• Water Resistant Construction

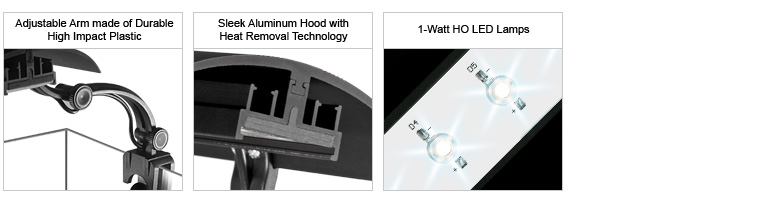

• Sleek Aluminum Hood with Heat Removal Technology
• Adjustable Arm made of Durable High Impact Plastic
• Patent Pending

• Super Blue LED Brings out the property of glow fish, fluorescent plants and gravels

Glass Thickness:
Maximum glass thickness ½”
¼” glass use the suction cup provided to secure fixture to the aquarium
3/8” or ½” glass remove the suction cup provided to secure fixture to the aquarium


• Super Blue LED Brings out the property of glow fish, fluorescent plants and gravels

Spectrum Graph (click on image to enlarge)

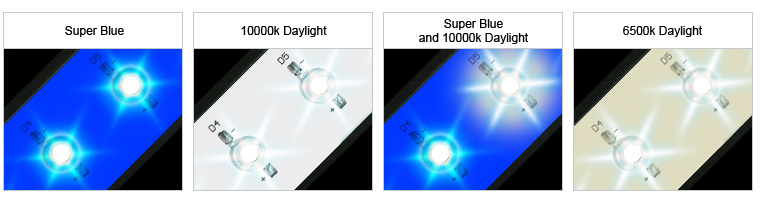

MODEL #	DESCRIPTION	NO. of LEDs	DIMENION (L x W x H)	DIMENSION w/o arm (L x W x H)	UPC NO.
01114	6” 8-watt Super Blue Micro Sun LED High Output Clamp Light	8x Super Blue	6" x 9" x 6"	6" x 4" x 0.94"	805552011142
01115	6” 8-watt 10000k Daylight Micro Sun LED High Output Clamp Light	8x 10000k Daylight	6" x 9" x 6"	6" x 4" x 0.94"	805552011159
01116	6” 8-watt Super Blue & 10000k Daylight Micro Sun LED High Output Clamp Light	6x Super Blue 2x 10000k Daylight	6" x 9" x 6"	6" x 4" x 0.94"	805552011166
01122	6” 8-watt 6500k Daylight Micro Sun LED High Output Clamp Light	8x 6500k Daylight	6" x 9" x 6"	6" x 4" x 0.94"	805552011227
01117	12” 16-watt Super Blue Micro Sun LED High Output Clamp Light	16x Super Blue	12" x 9" x 6"	12" x 4" x 0.94"	805552011173
01118	12” 16-watt 10000k Daylight Micro Sun LED High Output Clamp Light	16x 10000k Daylight	12" x 9" x 6"	12" x 4" x 0.94"	805552011180
01119	12” 16-watt Super Blue & 10000k Daylight Micro Sun LED High Output Clamp Light	10x Super Blue 6x 10000k Daylight	12" x 9" x 6"	12" x 4" x 0.94"	805552011197
01123	12” 16-watt 6500k Daylight Micro Sun LED High Output Clamp Light	16x 6500k Daylight	12" x 9" x 6"	12" x 4" x 0.94"	805552011234


Power Supply 8w 24V=0.35A (350mA) For All Wave Point 6" LED HO Clamp Light Model # 01301 UPC # 805552013016	Power Supply 16w 24V=0.7A (700mA) For All Wave Point 12" LED HO Clamp Light Model # 01302 UPC # 805552013023

Click Here to download instruction for installation (PDF)

If you have problem opening PDF file from Internet Explorer, please try Firefox or right click on the link and select Save Target As and save the PDF file in your computer.
